Aluminum electrolytic capacitor with 330µF capacitance and 100V DC rated voltage, featuring 20% tolerance and 917mA ripple current. This surface mount component offers 150mΩ impedance and 5000-hour life at 105°C maximum operating temperature. Constructed in a cylindrical radial package with 18mm diameter and 16.5mm height, it operates from -55°C to 105°C. RoHS compliant and lead-free, it is supplied on tape and reel.
PackageRadial
Voltage100V
Capacitance330uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UCD2A331MNQ1MS technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 18mm |
| Dissipation Factor | 0.07% |
| Features | General Purpose |
| Height | 16.5mm |
| Height - Seated (Max) | 0.689inch |
| Impedance | 150mR |
| Lead Free | Lead Free |
| Leakage Current | 330uA |
| Length | 16.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 917mA |
| RoHS Compliant | Yes |
| Series | CD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCD2A331MNQ1MS Datasheet
Download the complete datasheet for Nichicon UCD2A331MNQ1MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

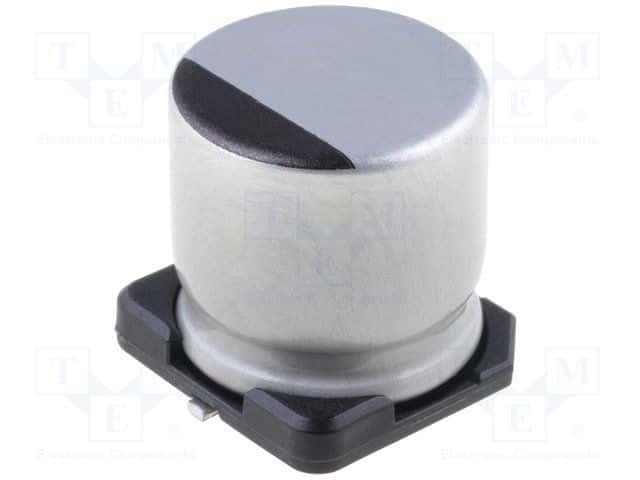

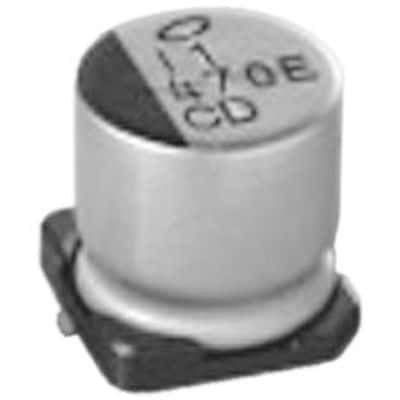

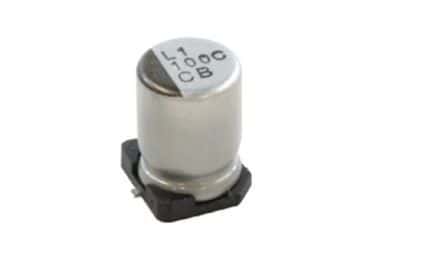

Product Images
