Aluminum electrolytic capacitor with 1.5mF capacitance and 10V DC rating. Features 20% tolerance, 105°C maximum operating temperature, and -55°C minimum operating temperature. Surface mount package with 10mm diameter and 13.5mm length, measuring 10.3mm in height. Offers 60mR impedance, 3uA leakage current, and 1.19A ripple current.
PackageRadial
Capacitance1.5mF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCL1A152MNL1GS technical specifications.
General
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.19% |
| Height | 10.3mm |
| Height - Seated (Max) | 0.531inch |
| Impedance | 60mR |
| Leakage Current | 3uA |
| Length | 13.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 595mA |
| Ripple Current (AC) | 1.19A |
| RoHS Compliant | Yes |
| Series | UCL |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCL1A152MNL1GS Datasheet
Download the complete datasheet for Nichicon UCL1A152MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

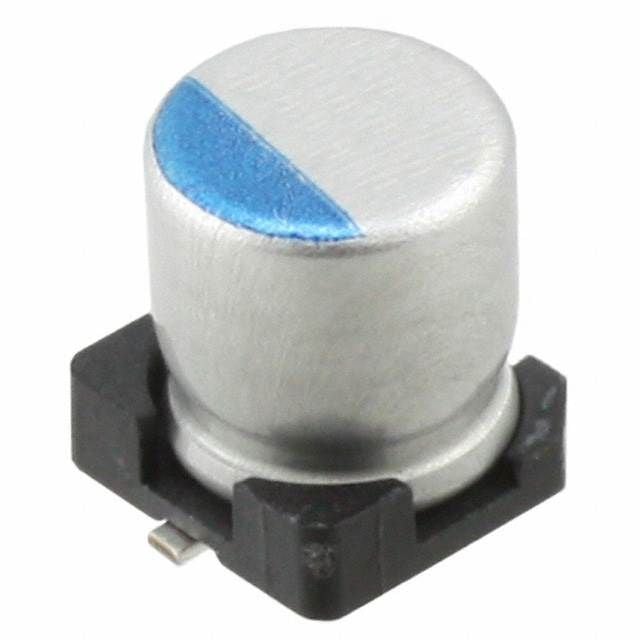

Product Images
