Aluminum electrolytic capacitor, 33µF capacitance, 10V DC rated voltage, and 20% tolerance. Features a 4mm diameter, 5.8mm height, and surface mount termination. Offers 160mA ripple current, 860mΩ ESR, and operates from -55°C to 105°C. Packaged in cut tape for automated assembly.
PackageRadial
Capacitance33uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCL1A330MCL6GS technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Diameter | 4mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.19% |
| ESR (Equivalent Series Resistance) | 860mR |
| Height | 5.8mm |
| Impedance | 850mR |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Ripple Current | 160mA |
| Ripple Current (AC) | 160mA |
| RoHS Compliant | Yes |
| Series | UCL |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCL1A330MCL6GS Datasheet
Download the complete datasheet for Nichicon UCL1A330MCL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

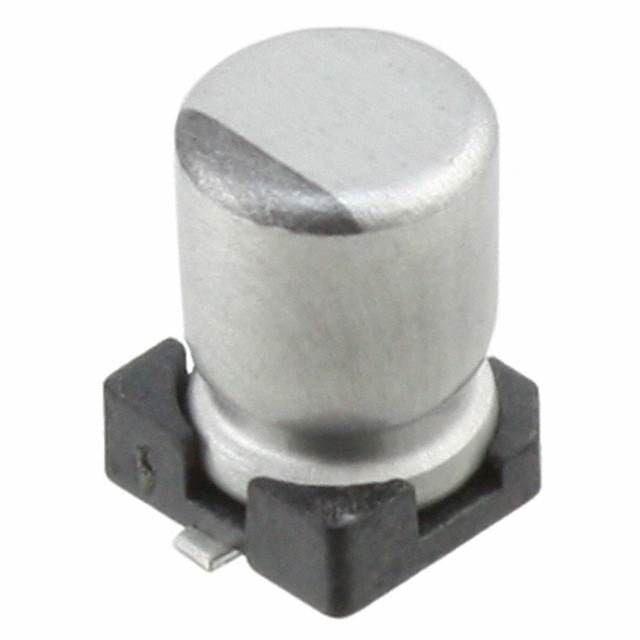

Product Images
