100µF, 35V polarized aluminum electrolytic capacitor with 20% tolerance. Features a 6.3mm diameter, 7.7mm height, and surface mount termination. Offers 160mΩ ESR and 160mΩ impedance, with a leakage current of 3µA. Rated for 2000 hours at 105°C, this RoHS compliant component is supplied in tape and reel packaging.
PackageRadial
Capacitance100uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCL1V101MCL6GS technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
160mR
Height
7.7mm
Impedance
160mR
Leakage Current
3uA
Length
7.7mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
900
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
600mA
Ripple Current (AC)
600mA
RoHS Compliant
Yes
Series
CL
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCL1V101MCL6GS Datasheet
Download the complete datasheet for Nichicon UCL1V101MCL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

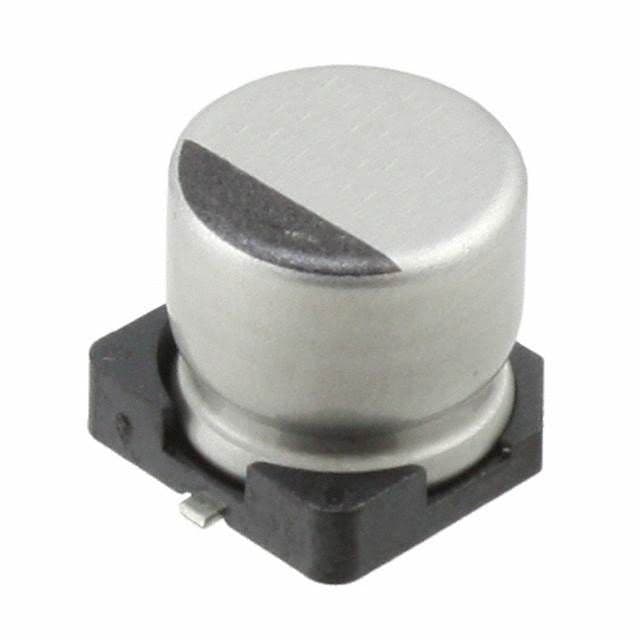

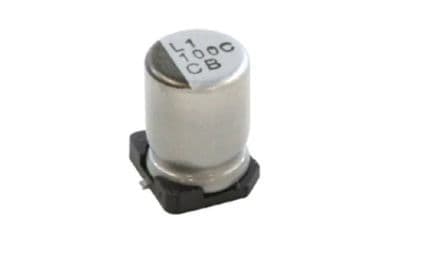

Product Images
