Aluminum electrolytic capacitor, 100µF capacitance, 50V voltage rating, and 20% tolerance. Features a 350mA ripple current, 2000-hour life at 105°C, and a minimum operating temperature of -55°C. Surface mount (SMD/SMT) package with dimensions of 6.3mm diameter and 7.7mm height. AEC-Q200 qualified and RoHS compliant, supplied in tape and reel packaging.
PackageSMD/SMT
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon UCM1H101MCL1GS technical specifications.
General
| Capacitance | 100uF |
| Package/Case | SMD/SMT |
| Diameter | 6.3mm |
| Height | 7.7mm |
| Height - Seated (Max) | 0.315inch |
| Impedance | 340mR |
| Lead Pitch | 2.2mm |
| Length | 7.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Ripple Current | 350mA |
| Ripple Current (AC) | 350mA |
| RoHS Compliant | Yes |
| Series | UCM |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 400.011771mg |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCM1H101MCL1GS Datasheet
Download the complete datasheet for Nichicon UCM1H101MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

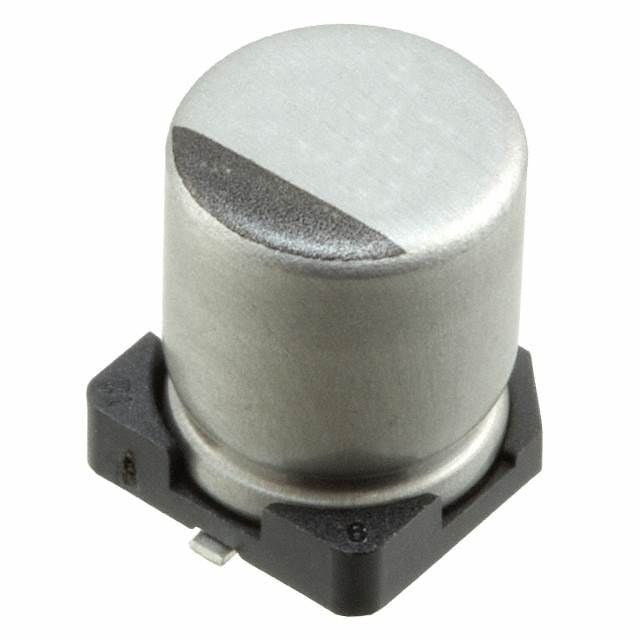

Product Images
