Aluminum electrolytic capacitor, 150µF capacitance, 35V voltage rating, and 20% tolerance. Features a 600mA ripple current, 160mΩ impedance, and a maximum operating temperature of 105°C. This surface mount component is housed in a 6.3mm diameter, 7.7mm height SMD package, suitable for automotive applications with AEC-Q200 qualification. Available in tape and reel packaging for efficient assembly.
PackageSMD/SMT
Voltage35V
Capacitance150uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UCM1V151MCL1GS technical specifications.
General
| Capacitance | 150uF |
| Package/Case | SMD/SMT |
| Diameter | 6.3mm |
| Height | 7.7mm |
| Height - Seated (Max) | 0.315inch |
| Impedance | 160mR |
| Lead Pitch | 2.2mm |
| Length | 7.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Ripple Current | 600mA |
| Ripple Current (AC) | 600mA |
| RoHS Compliant | Yes |
| Series | UCM |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Weight | 400.011771mg |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCM1V151MCL1GS Datasheet
Download the complete datasheet for Nichicon UCM1V151MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

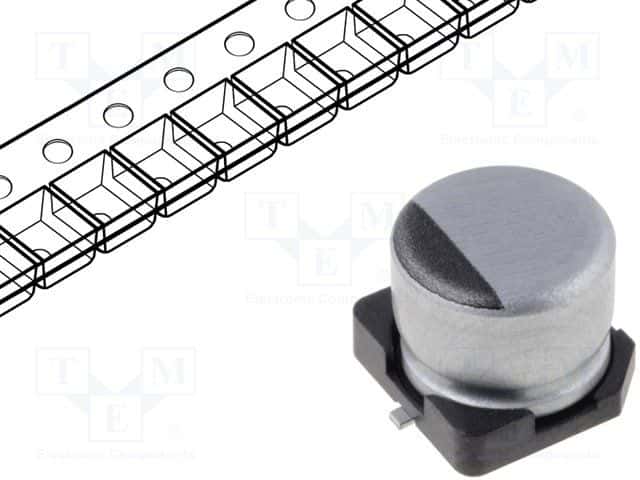

Product Images
