Aluminum electrolytic capacitor with 180µF capacitance and 250V DC rated voltage. Features 20% tolerance, 105°C maximum operating temperature, and 10000-hour life. This radial component has a 12.5mm diameter, 50mm height, and 5mm lead pitch, suitable for through-hole PCB mounting. Ripple current is 1.035A, with a leakage current of 100µA.
PackageRadial
Voltage250V
Capacitance180uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon UCS2E181MNY9 technical specifications.
General
| Capacitance | 180uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 100uA |
| Length | 50mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 1.035A |
| RoHS Compliant | Yes |
| Series | CS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCS2E181MNY9 Datasheet
Download the complete datasheet for Nichicon UCS2E181MNY9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

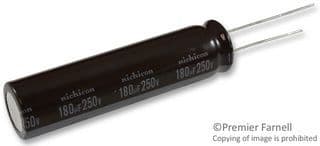

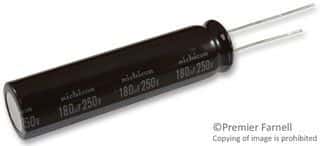

Product Images
