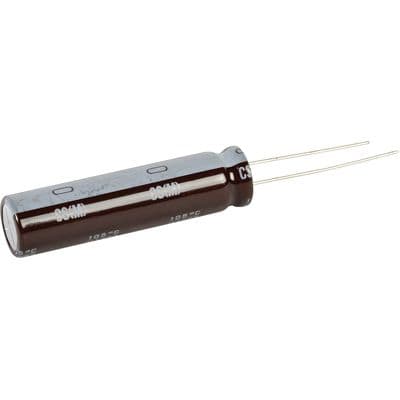

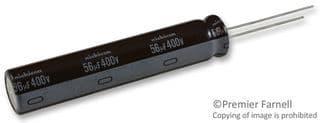

Aluminum electrolytic capacitor with 56µF capacitance and 400V DC rated voltage. Features a 20% tolerance, 1.04A ripple current, and 100µA leakage current. Designed for through-hole PCB mounting with a 5mm radial lead pitch and 0.6mm lead diameter. Operates from -40°C to 105°C with a 10,000-hour life expectancy. Dimensions are 10mm diameter by 50mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UCS2G560MND9 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon UCS2G560MND9 technical specifications.
| Capacitance | 56uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 40mm |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 100uA |
| Length | 50mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 1.04A |
| RoHS Compliant | Yes |
| Series | CS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
| RoHS | Compliant |
