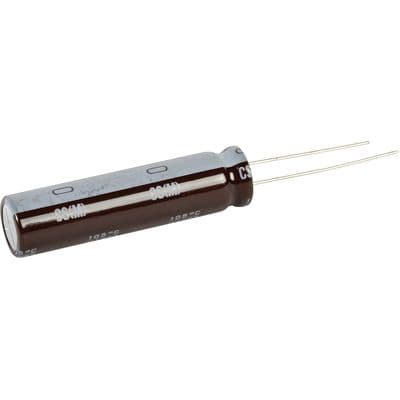

Aluminum electrolytic capacitor with 68µF capacitance and 400V voltage rating. Features 20% tolerance, 600mA ripple current, and 100µA leakage current. Designed for through-hole PCB mounting with a radial lead pitch of 0.197 inches. Operates from -40°C to 105°C with a lifespan of 10,000 hours. Cylindrical construction measures 12.5mm diameter by 40mm length.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UCS2G680MNY9 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon UCS2G680MNY9 technical specifications.
| Capacitance | 68uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Height | 31.5mm |
| Height - Seated (Max) | 1.654inch |
| Lead Pitch | 0.197inch |
| Lead/Base Style | Straight |
| Leakage Current | 100uA |
| Length | 40mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 600mA |
| Series | CS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
| RoHS | Compliant |
Download the complete datasheet for Nichicon UCS2G680MNY9 to view detailed technical specifications.
