Aluminum electrolytic capacitor, 10µF capacitance, 450V DC rated voltage, and 20% tolerance. Features a 450mA ripple current rating, 10000-hour life at 105°C maximum operating temperature, and a dissipation factor of 0.24%. This through-hole component has a radial package measuring 12.5mm in diameter and 20mm in height, with a 5mm lead pitch and 0.6mm lead diameter. Supplied in bulk packaging.
PackageRadial
Voltage450V
Capacitance10uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon UCS2W100MHD technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dissipation Factor | 0.24% |
| Height | 20mm |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Polarity | Polar |
| Radiation Hardening | No |
| Ripple Current | 450mA |
| Ripple Current (AC) | 450mA |
| RoHS Compliant | Yes |
| Series | CS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCS2W100MHD Datasheet
Download the complete datasheet for Nichicon UCS2W100MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

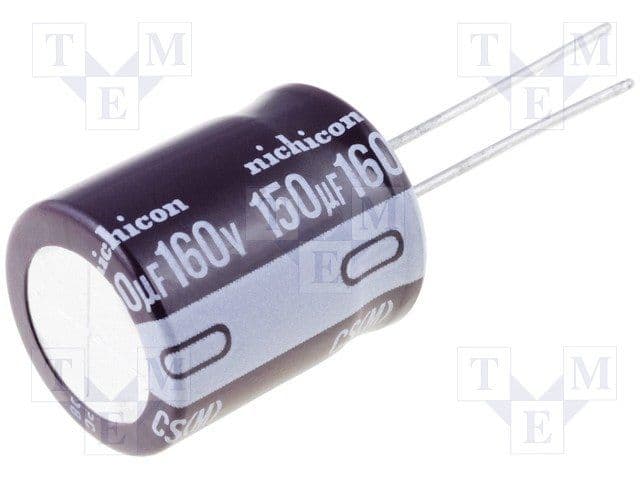

Product Images
