Standard aluminum electrolytic capacitor, 150µF capacitance, 10V DC rated voltage, and 20% tolerance. Features a 6.3mm diameter and 7mm height, with a surface mount termination. Offers a ripple current of 140mA, low impedance of 1.1Ω, and leakage current of 3µA. Designed for operation from -25°C to 105°C with a lifespan of 7000 hours. Packaged in tape and reel for automated assembly.
PackageRadial
Voltage10V
Capacitance150uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UCW1A151MCL1GS technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.28% |
| Features | General Purpose |
| Height | 7mm |
| Height - Seated (Max) | 0.276inch |
| Impedance | 1.1R |
| Leakage Current | 3uA |
| Length | 7mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 140mA |
| RoHS Compliant | Yes |
| Series | CW |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCW1A151MCL1GS Datasheet
Download the complete datasheet for Nichicon UCW1A151MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

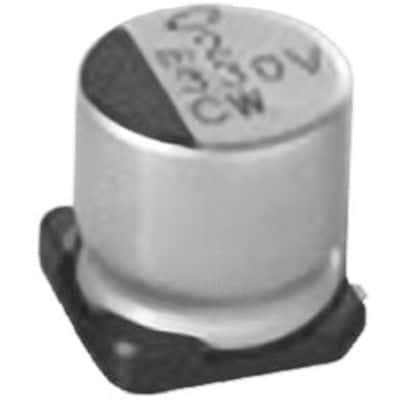

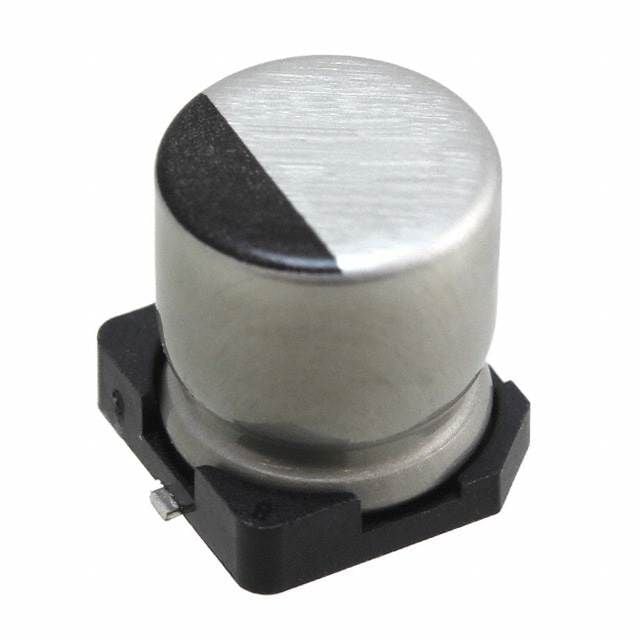

Product Images
