Aluminum electrolytic capacitor, 33µF capacitance, 10V DC rated voltage, 20% tolerance. Features 95mA ripple current, 2.2Ω impedance, and 3.3µA leakage current. Operates from -25°C to 105°C with a 7000-hour life expectancy. Surface mount radial construction, 5mm diameter, 7mm height, packaged in tape and reel.
PackageRadial
Voltage10V
Capacitance33uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UCW1A330MCL1GS technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Construction
Cylindrical
Diameter
5mm
Features
General Purpose
Height
7mm
Height - Seated (Max)
0.276inch
Impedance
2.2R
Leakage Current
3.3uA
Length
7mm
Life (Hours)
7000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
95mA
RoHS Compliant
Yes
Series
CW
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCW1A330MCL1GS Datasheet
Download the complete datasheet for Nichicon UCW1A330MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

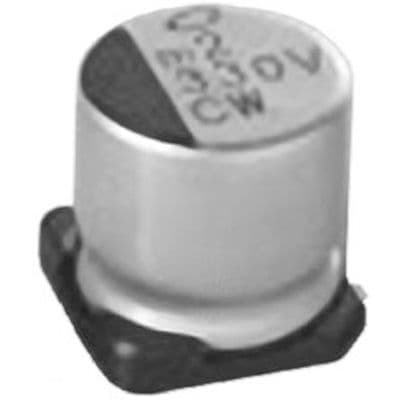

Product Images
