Aluminum electrolytic capacitor with 150µF capacitance and 16V DC rated voltage, featuring 20% tolerance. This surface mount component offers a 230mA ripple current capability and a low dissipation factor of 0.26%. Designed for general purpose applications, it operates within a temperature range of -25°C to 105°C and boasts a 7000-hour life expectancy. The cylindrical construction measures 6.3mm in diameter and 8.7mm in height, supplied on tape and reel.
PackageRadial
Voltage16V
Capacitance150uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UCW1C151MCL1GS technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.26% |
| Features | General Purpose |
| Height | 8.7mm |
| Height - Seated (Max) | 0.248inch |
| Impedance | 1R |
| Leakage Current | 24uA |
| Length | 8.7mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 230mA |
| RoHS Compliant | Yes |
| Series | CW |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCW1C151MCL1GS Datasheet
Download the complete datasheet for Nichicon UCW1C151MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

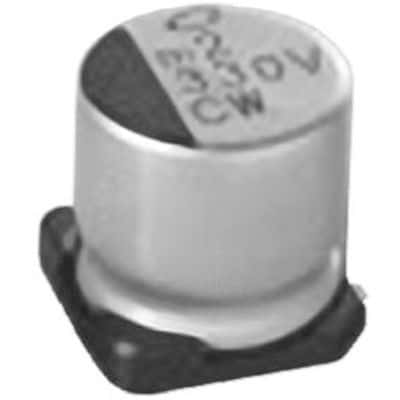

Product Images
