Aluminum electrolytic capacitor with 47µF capacitance and 16V DC rated voltage. Features 20% tolerance, 1.1Ω impedance, and 140mA ripple current. Designed for surface mount applications with a 6.3mm diameter and 7mm height. Operates from -25°C to 105°C with a 7000-hour life expectancy. RoHS compliant and supplied in tape and reel packaging.
PackageRadial
Voltage16V
Capacitance47uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UCW1C470MCL1GS technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Features | General Purpose |
| Height | 7mm |
| Height - Seated (Max) | 0.276inch |
| Impedance | 1.1R |
| Leakage Current | 7.52uA |
| Length | 7mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 140mA |
| RoHS Compliant | Yes |
| Series | CW |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCW1C470MCL1GS Datasheet
Download the complete datasheet for Nichicon UCW1C470MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

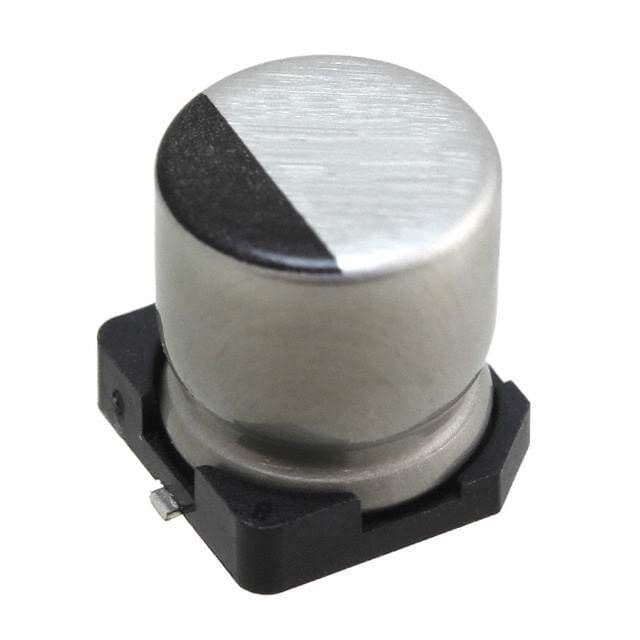

Product Images
