220µF, 25V aluminum electrolytic capacitor with 20% tolerance. Features a cylindrical, radial construction with 8mm diameter and 10mm height, suitable for surface mount applications. Offers 600mA ripple current, 220mΩ impedance, and 3µA leakage current. Rated for 7000 hours at 105°C, with an operating temperature range of -25°C to 105°C. Packaged in tape and reel.
PackageRadial
Voltage25V
Capacitance220uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UCW1E221MNL1GS technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Features
General Purpose
Height
10mm
Height - Seated (Max)
0.315inch
Impedance
220mR
Leakage Current
3uA
Length
10mm
Life (Hours)
7000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
600mA
RoHS Compliant
Yes
Series
CW
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UCW1E221MNL1GS Datasheet
Download the complete datasheet for Nichicon UCW1E221MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

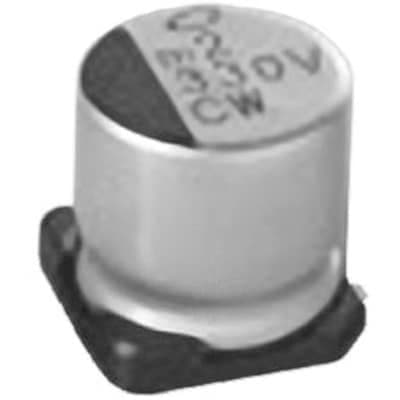

Product Images
