Aluminum electrolytic capacitor, 47µF capacitance, 25V DC rated voltage, 20% tolerance. Features a 6.3mm diameter and 7mm height, surface mount termination, and a cylindrical construction. Offers 140mA ripple current, 3µA leakage current, and 1.1Ω impedance. Operates from -25°C to 105°C with a 7000-hour lifespan at rated conditions. Lead-free and RoHS compliant.
PackageRadial
Voltage25V
Capacitance47uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UCW1E470MCL1GS technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.16% |
| Features | General Purpose |
| Height | 7mm |
| Height - Seated (Max) | 0.248inch |
| Impedance | 1.1R |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 7mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 140mA |
| RoHS Compliant | Yes |
| Series | CW |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCW1E470MCL1GS Datasheet
Download the complete datasheet for Nichicon UCW1E470MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

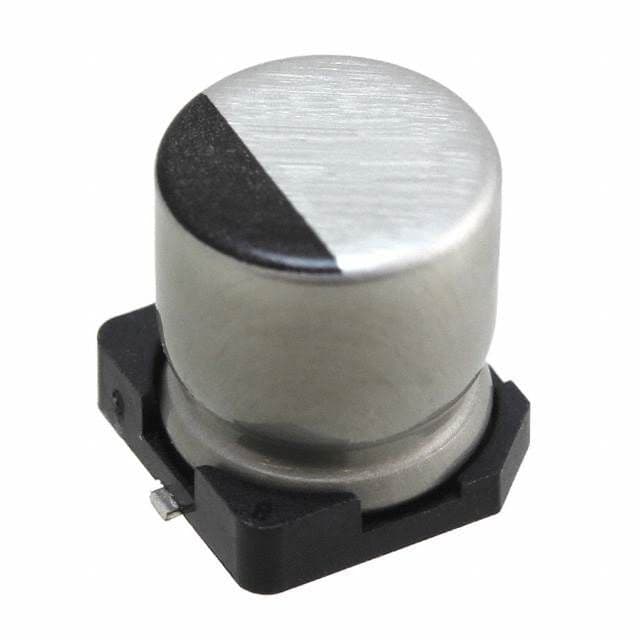

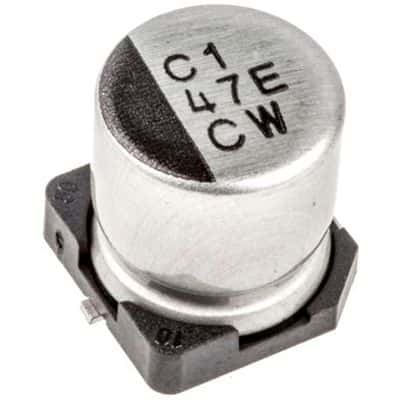

Product Images
