100µF, 50V aluminum electrolytic capacitor with 20% tolerance. Features a 350mA ripple current rating and 530mΩ impedance. Surface mountable in an 8 x 10mm cylindrical radial package, operating from -25°C to 105°C with a 7000-hour life expectancy. RoHS compliant and supplied on tape and reel.
PackageRadial
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon UCW1H101MNL1GS technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
Features
General Purpose
Height
10mm
Height - Seated (Max)
0.394inch
Impedance
530mR
Leakage Current
50uA
Length
10mm
Life (Hours)
7000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
350mA
Ripple Current (AC)
350mA
RoHS Compliant
Yes
Series
CW
Termination
SMD/SMT
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
8.3mm
Compliance
RoHS
Compliant
Datasheet
Nichicon UCW1H101MNL1GS Datasheet
Download the complete datasheet for Nichicon UCW1H101MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

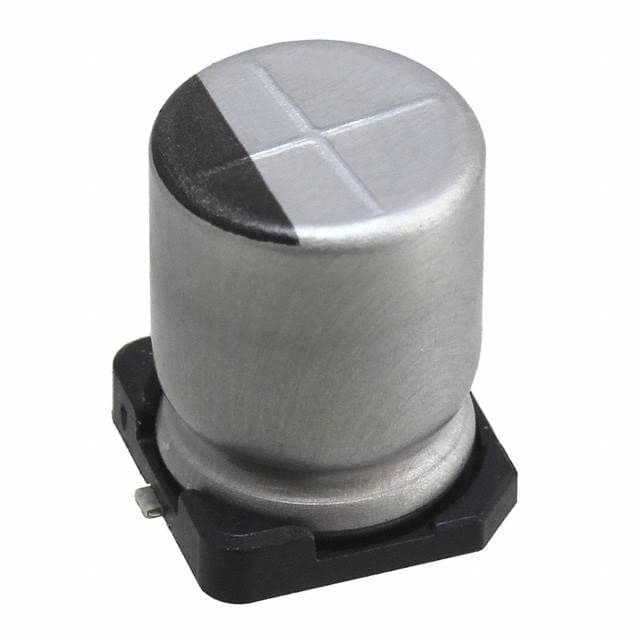

Product Images
