Technical Specifications
Nichicon UCY2E221MHD9 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Height - Seated (Max) | 1.457inch |
| Lead Pitch | 0.295inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ripple Current | 1.22A |
| RoHS Compliant | Yes |
| Series | CY |
| Tolerance | 20% |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCY2E221MHD9 Datasheet
Download the complete datasheet for Nichicon UCY2E221MHD9 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

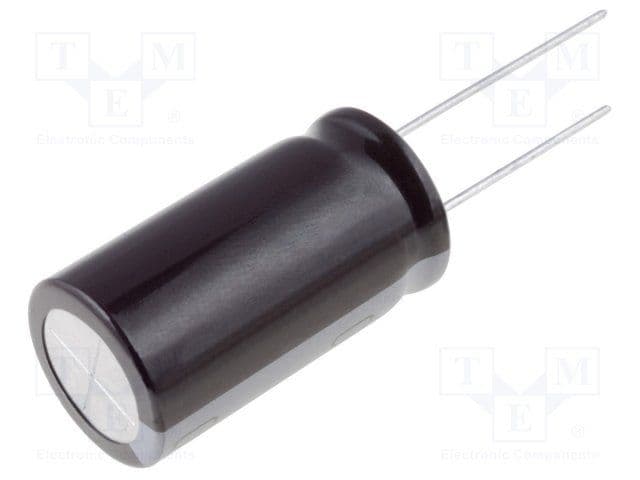

Product Images
