Aluminum electrolytic capacitor with 33µF capacitance and 400V DC rated voltage. Features a 20% tolerance, 385mA ripple current, and a maximum operating temperature of 105°C. This radial component has a 12.5mm diameter and 25mm height, with a 5mm lead pitch and 0.6mm lead diameter. Designed for through-hole mounting, it offers a leakage current of 100µA and a rated life of 10000 hours.
PackageRadial
Capacitance33uF
Voltage Rating400V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UCY2G330MHD technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.24% |
| Height | 25mm |
| Height - Seated (Max) | 1.043inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 19mm |
| Lead Pitch | 5mm |
| Leakage Current | 100uA |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 385mA |
| Ripple Current (AC) | 385mA |
| RoHS Compliant | Yes |
| Series | UCY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCY2G330MHD Datasheet
Download the complete datasheet for Nichicon UCY2G330MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

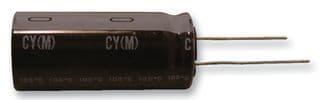

Product Images
