Technical Specifications
Nichicon UCY2G390MHD technical specifications.
General
| Capacitance | 39uF |
| Package/Case | Radial |
| Diameter | 12.5mm |
| Dissipation Factor | 0.24% |
| Features | General Purpose |
| Height | 31.5mm |
| Height - Seated (Max) | 1.299inch |
| Lead Pitch | 5mm |
| Length | 31.5mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 465mA |
| RoHS Compliant | Yes |
| Series | CY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCY2G390MHD Datasheet
Download the complete datasheet for Nichicon UCY2G390MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

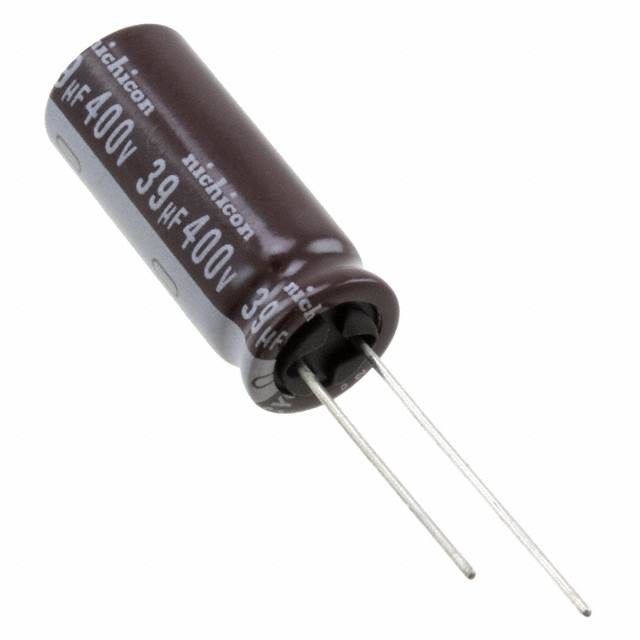

Product Images
