Standard aluminum electrolytic capacitor with 10µF capacitance and 500V voltage rating. Features a 20% tolerance and operates across a temperature range of -25°C to 105°C. Designed with a radial package for through-hole mounting, this component offers a ripple current of 160mA and a lifespan of 10,000 hours at rated conditions.
PackageRadial
Capacitance10uF
Voltage Rating500V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UCY2H100MHD1TO technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Packaging | Cut Tape |
| Series | UCY |
| Tolerance | 20% |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCY2H100MHD1TO Datasheet
Download the complete datasheet for Nichicon UCY2H100MHD1TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

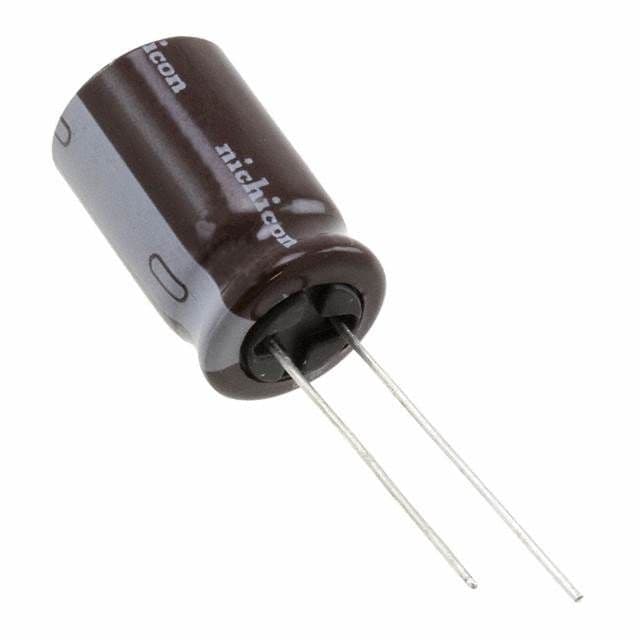

Product Images
