Technical Specifications
Nichicon UCY2V330MHD1TO technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Diameter | 12.5mm |
| Dissipation Factor | 0.24% |
| Height - Seated (Max) | 0.846inch |
| Lead Pitch | 0.197inch |
| Lead/Base Style | Straight |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 380mA |
| RoHS Compliant | Yes |
| Series | CY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCY2V330MHD1TO Datasheet
Download the complete datasheet for Nichicon UCY2V330MHD1TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

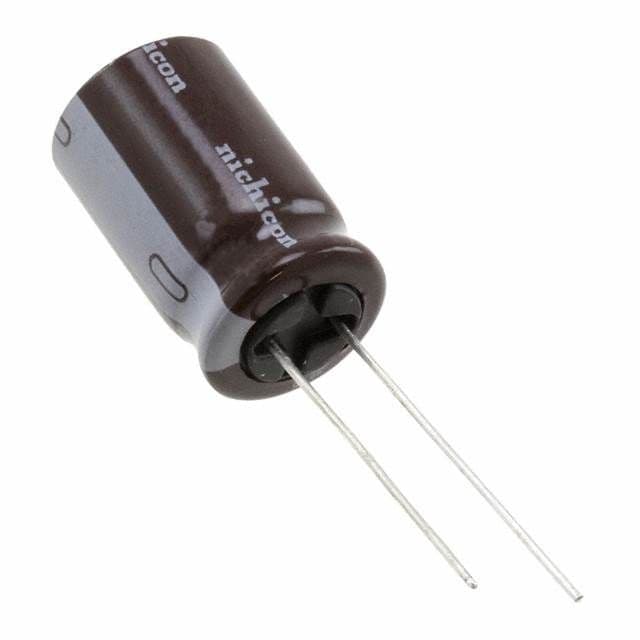

Product Images
