100µF, 16V aluminum electrolytic capacitor with 20% tolerance. Features 450mΩ ESR, 197mA ripple current, and a maximum operating temperature of 125°C. This surface mount component has a cylindrical construction with dimensions of 6.3mm diameter and 7.7mm height. Designed for 2000 hours of operation, it offers a leakage current of 3µA and is RoHS compliant.
PackageRadial
Capacitance100uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCZ1C101MCL6GS technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.23% |
| ESR (Equivalent Series Resistance) | 450mR |
| Height | 7.7mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 7.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 197mA |
| Ripple Current (AC) | 197mA |
| RoHS Compliant | Yes |
| Series | UCZ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCZ1C101MCL6GS Datasheet
Download the complete datasheet for Nichicon UCZ1C101MCL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

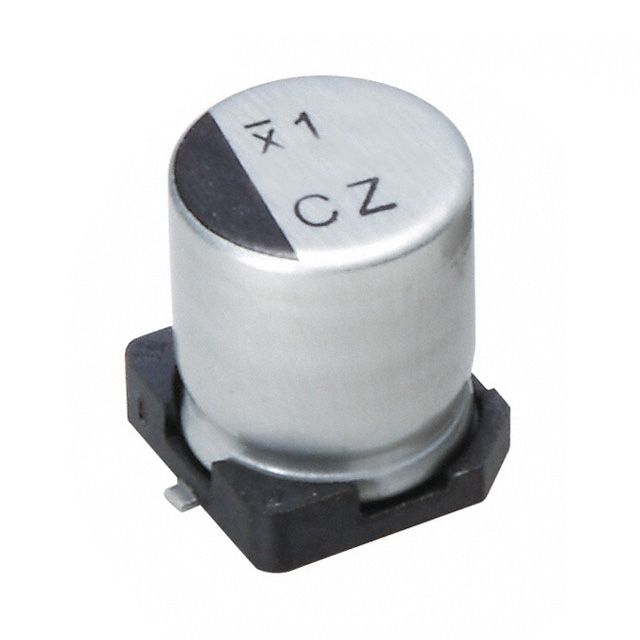

Product Images
