The Nichicon CZ Series 100uF 25V 20% Radial Aluminum Electrolytic Capacitor features a capacitance of 100uF with an ESR of 450mR. It has a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. The capacitor is lead free and RoHS compliant, packaged in a radial case with a seated height of 0.276inch. It is suitable for surface mount applications and has a leakage current of 3uA.
PackageRadial
Capacitance100uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCZ1E101MCL6GS technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| ESR (Equivalent Series Resistance) | 450mR |
| Height - Seated (Max) | 0.276inch |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 7.7mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 98.5mA |
| RoHS Compliant | Yes |
| Series | CZ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCZ1E101MCL6GS Datasheet
Download the complete datasheet for Nichicon UCZ1E101MCL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

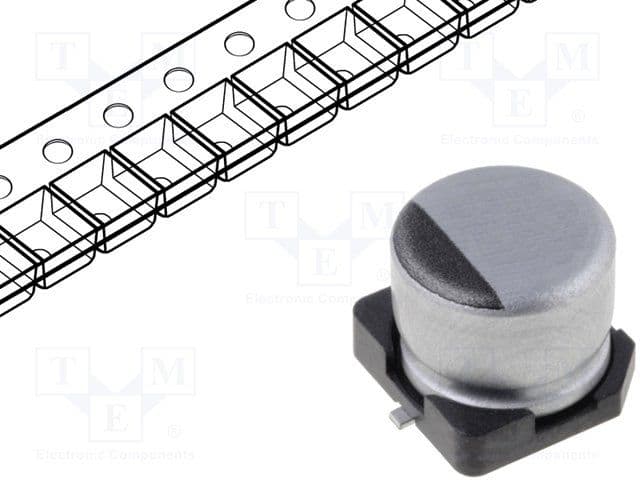

Product Images
