This 100uF ceramic capacitor has a 50V voltage rating and 20% tolerance. It is designed for surface mount applications and has a radial package type. The capacitor operates within a temperature range of -40°C to 125°C and has a leakage current of 3uA. It is lead free and RoHS compliant.
PackageRadial
Capacitance100uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon UCZ1H101MCL1GS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon UCZ1H101MCL1GS technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| ESR (Equivalent Series Resistance) | 200mR |
| Height | 10mm |
| Height - Seated (Max) | 0.413inch |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 10mm |
| Material | Aluminium |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 250mA |
| RoHS Compliant | Yes |
| Series | CZ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCZ1H101MCL1GS Datasheet
Download the complete datasheet for Nichicon UCZ1H101MCL1GS to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

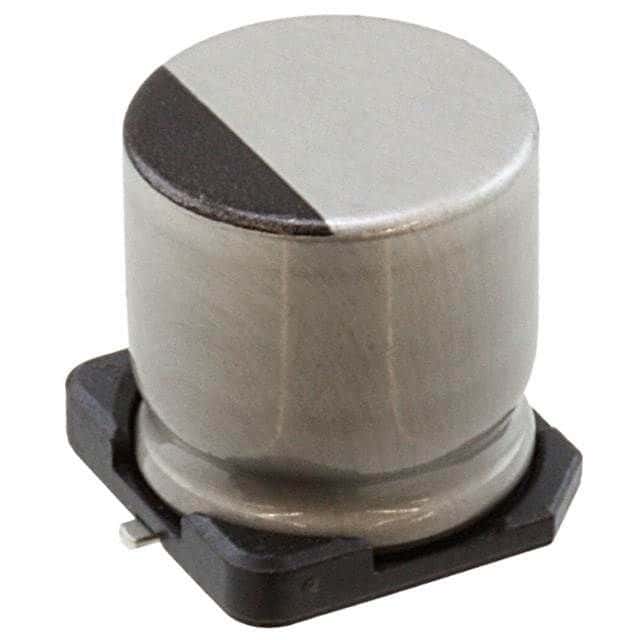

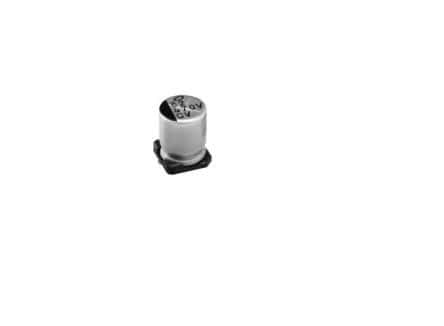

Product Images
