Aluminum electrolytic capacitor, polarized, wet aluminum construction, featuring 220µF capacitance with ±20% tolerance. Rated for 35V DC, this surface mount component offers a low ESR of 150mΩ, a dissipation factor of 0.16%, and a leakage current of 3µA. Operating across a wide temperature range of -40°C to 125°C, it provides 3000 hours of life and supports a ripple current of 500mA. Packaged in a 10mm diameter cylindrical radial case, it is RoHS compliant.
PackageRadial
Capacitance220uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UCZ1V221MCL1GS technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| ESR (Equivalent Series Resistance) | 150mR |
| Height | 10mm |
| Height - Seated (Max) | 0.394inch |
| Leakage Current | 3uA |
| Length | 10mm |
| Life (Hours) | 3000Hour |
| Material | Aluminium |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 500mA |
| Ripple Current (AC) | 500mA |
| RoHS Compliant | Yes |
| Series | UCZ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UCZ1V221MCL1GS Datasheet
Download the complete datasheet for Nichicon UCZ1V221MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

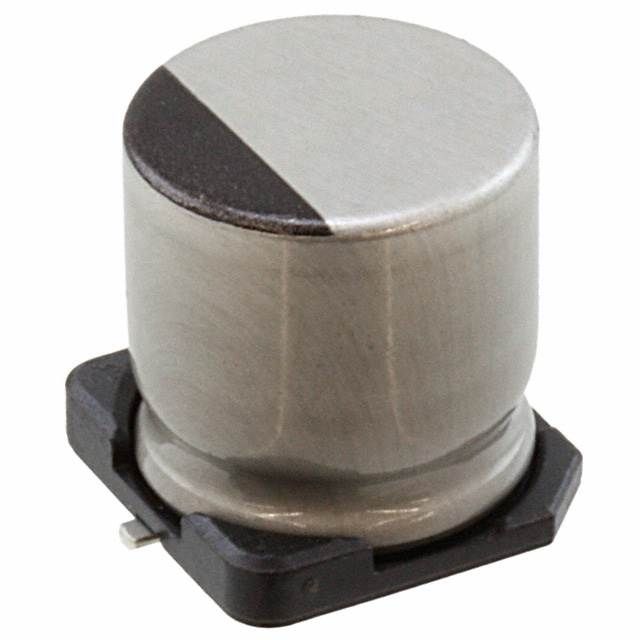

Product Images
