Aluminum electrolytic capacitor, 470µF capacitance, 63V voltage rating, and 20% tolerance. Features a radial package with a 7.5mm lead pitch and 0.8mm lead diameter, measuring 16mm in diameter and 25mm in height. Offers 840mA ripple current, 296.1µA leakage current, and a lifespan of 1000 hours at 85°C. Operates within a temperature range of -40°C to 85°C and is RoHS compliant.
PackageRadial
Voltage63V
Capacitance470uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Nichicon UFG1J471MHM technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 296.1uA |
| Length | 25mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Ripple Current | 840mA |
| RoHS Compliant | Yes |
| Series | UFG |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
| Weight | 0.260322oz |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UFG1J471MHM Datasheet
Download the complete datasheet for Nichicon UFG1J471MHM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

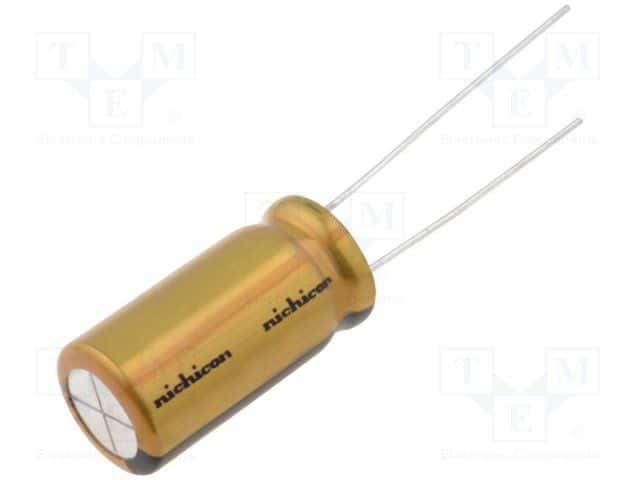

Product Images
