Nichicon
UFG1V471MHM1TO
Cap Aluminum Lytic 470uF 35V 20% (12.5 X 25mm) Radial 5mm 590mA 1000h 85°C Ammo
PackageRadial
Capacitance470uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UFG1V471MHM1TO technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Height - Seated (Max)
1.063inch
Lead Pitch
0.197inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
1
Packaging
Cut Tape
Ripple Current
590mA
RoHS Compliant
Yes
Series
Muse FG
Tolerance
20%
Voltage Rating
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UFG1V471MHM1TO Datasheet
Download the complete datasheet for Nichicon UFG1V471MHM1TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

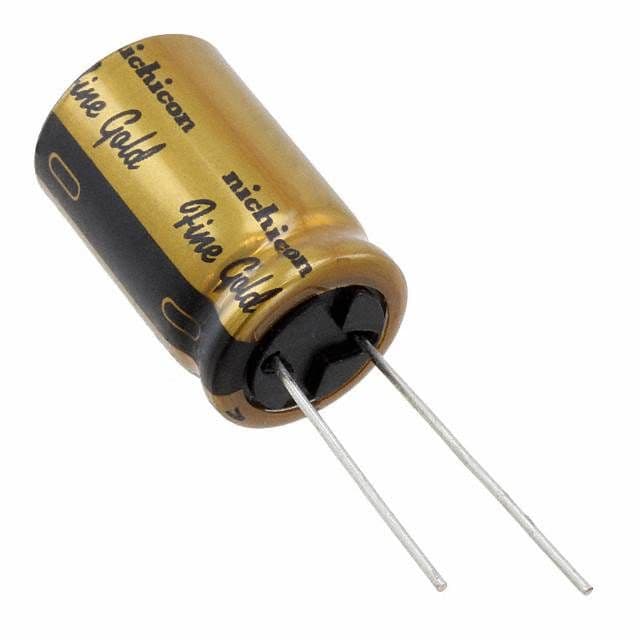

Product Images
