Aluminum electrolytic capacitor with 330µF capacitance and 16V DC rated voltage. Features 20% tolerance, 520mΩ ESR, and 130mΩ impedance. Designed for through-hole mounting with a radial package, 3.5mm lead pitch, and 0.6mm lead diameter. Operates from -40°C to 105°C, offering a 7000-hour life at 105°C and 640mA ripple current. RoHS compliant and lead-free.
PackageRadial
Voltage16V
Capacitance330uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UHE1C331MPD technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| ESR (Equivalent Series Resistance) | 520mR |
| Height | 11.5mm |
| Impedance | 130mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Leakage Current | 52.8uA |
| Length | 11.5mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 640mA |
| RoHS Compliant | Yes |
| Series | HE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE1C331MPD Datasheet
Download the complete datasheet for Nichicon UHE1C331MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

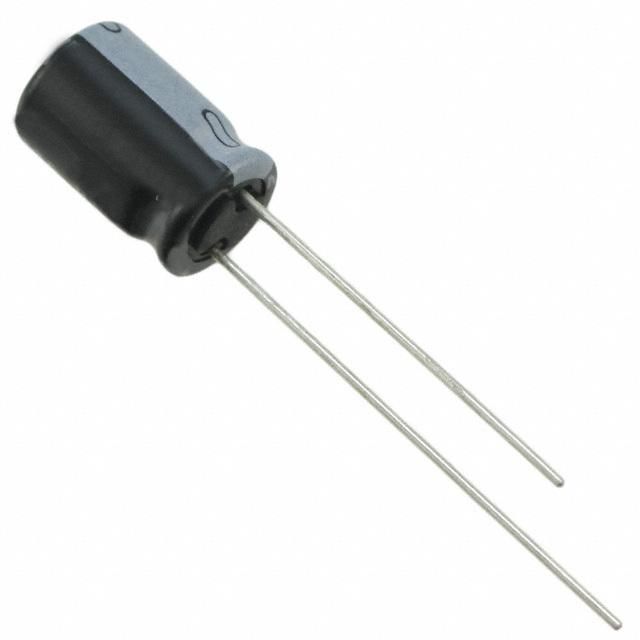

Product Images
