Standard aluminum electrolytic capacitor, 1000µF capacitance, 50V DC rated voltage, with 20% tolerance. Features a radial package, 18mm diameter, 20mm height, and 7.5mm lead pitch. Offers 2.49A ripple current, 97mΩ ESR, and 36mΩ impedance. Operates from -40°C to 105°C with a 10000-hour life expectancy. RoHS compliant and lead-free.
PackageRadial
Capacitance1mF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHE1H102MHD3 technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 97mR |
| Height | 20mm |
| Impedance | 36mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 500uA |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.49A |
| Ripple Current (AC) | 2.49A |
| RoHS Compliant | Yes |
| Series | UHE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE1H102MHD3 Datasheet
Download the complete datasheet for Nichicon UHE1H102MHD3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

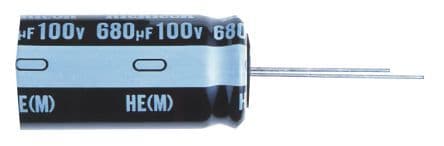

Product Images
