Technical Specifications
Nichicon UHE1H102MHD6TN technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 75mR |
| Height | 25mm |
| Impedance | 25mR |
| Lead Pitch | 7.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | UHE |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE1H102MHD6TN Datasheet
Download the complete datasheet for Nichicon UHE1H102MHD6TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

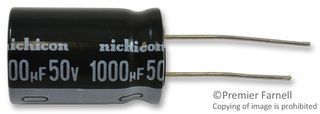

Product Images
