Standard aluminum electrolytic capacitor with 560µF capacitance and 50V DC rating. Features 20% tolerance, 150mΩ ESR, and 54mΩ impedance. Rated for 105°C maximum operating temperature and 1.448A ripple current. Radial package measures 18mm x 15mm with a 7.5mm lead pitch.
PackageRadial
Capacitance560uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHE1H561MHD6TN technical specifications.
General
| Capacitance | 560uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 150mR |
| Height | 15mm |
| Height - Seated (Max) | 0.65inch |
| Impedance | 54mR |
| Lead Pitch | 0.295inch |
| Lead/Base Style | Straight |
| Length | 15mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 1.448A |
| RoHS Compliant | Yes |
| Series | UHE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE1H561MHD6TN Datasheet
Download the complete datasheet for Nichicon UHE1H561MHD6TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

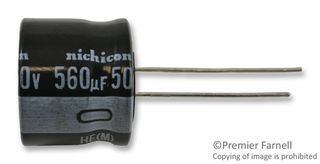

Product Images
