Aluminum electrolytic capacitor with 180µF capacitance and 63V voltage rating, featuring 20% tolerance. This radial component offers 527mA ripple current, 1.1Ω ESR, and 230mΩ impedance. Designed for through-hole mounting with a 5mm lead pitch, it operates from -40°C to 105°C with a 10,000-hour lifespan. Lead-free and RoHS compliant, it comes in bulk packaging.
PackageRadial
Capacitance180uF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHE1J181MHD6 technical specifications.
General
| Capacitance | 180uF |
| Package/Case | Radial |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.09% |
| ESR (Equivalent Series Resistance) | 1.1R |
| Height | 15mm |
| Impedance | 230mR |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 113.4uA |
| Length | 15mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 527mA |
| RoHS Compliant | Yes |
| Series | UHE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE1J181MHD6 Datasheet
Download the complete datasheet for Nichicon UHE1J181MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

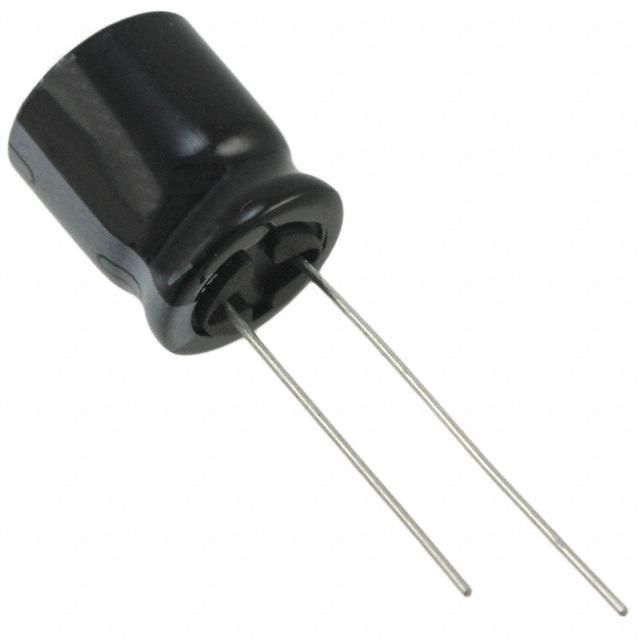

Product Images
