Standard aluminum electrolytic capacitor with 220µF capacitance and 35V DC rating. Features 20% tolerance, 350mΩ ESR, and 87mΩ impedance. Rated for 7000 hours at 105°C, with a ripple current of 588mA. Radial package with 8mm diameter, 15mm height, and 3.5mm lead pitch, suitable for through-hole mounting.
PackageRadial
Capacitance220uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHE1V221MPD1TD technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 350mR |
| Height | 15mm |
| Height - Seated (Max) | 0.65inch |
| Impedance | 87mR |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Length | 15mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 588mA |
| RoHS Compliant | Yes |
| Series | UHE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE1V221MPD1TD Datasheet
Download the complete datasheet for Nichicon UHE1V221MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

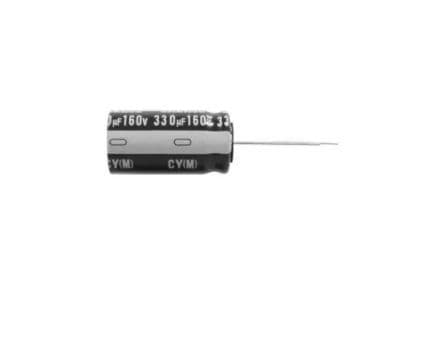

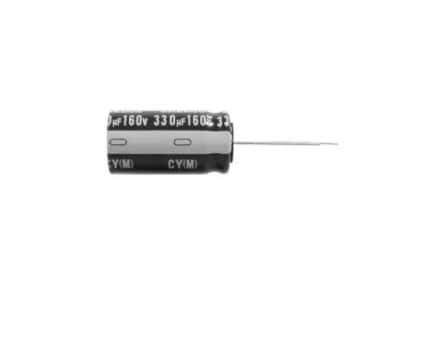

Product Images
