This 330uF aluminum electrolytic capacitor has a 35V voltage rating and 20% tolerance. It is designed for use in applications where high capacitance and moderate voltage are required. The capacitor is packaged in a radial package with a 10mm diameter and 16mm height, and is suitable for through-hole mounting. It has a maximum operating temperature of 105°C and a minimum operating temperature of -40°C. The capacitor is RoHS compliant and is available in quantities of 1000.
PackageRadial
Capacitance330uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHE1V331MPD1TD technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 240mR |
| Height | 16mm |
| Height - Seated (Max) | 0.688inch |
| Impedance | 60mR |
| Lead Pitch | 5mm |
| Leakage Current | 115.5uA |
| Length | 16mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Ripple Current | 847mA |
| RoHS Compliant | Yes |
| Series | UHE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE1V331MPD1TD Datasheet
Download the complete datasheet for Nichicon UHE1V331MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

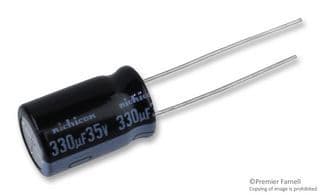

Product Images
