Aluminum electrolytic capacitor with 470µF capacitance and 35V DC rated voltage. Features a 20% tolerance, 160mΩ ESR, and 49mΩ impedance. Rated for 1.45A ripple current and 10000 hours life at 105°C. Through-hole mounting with a 5mm lead pitch, housed in a 12.5mm diameter by 15mm height radial package.
PackageRadial
Capacitance470uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHE1V471MHD6 technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 160mR |
| Height | 15mm |
| Impedance | 49mR |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 164.5uA |
| Length | 15mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.45A |
| RoHS Compliant | Yes |
| Series | UHE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE1V471MHD6 Datasheet
Download the complete datasheet for Nichicon UHE1V471MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

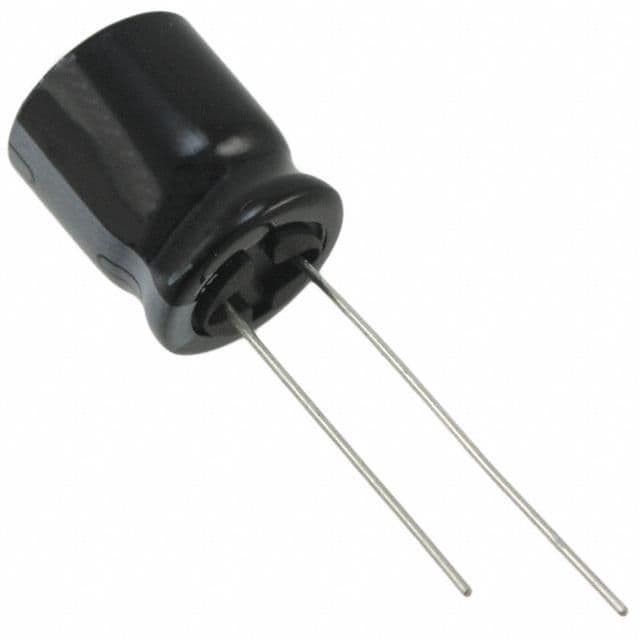

Product Images
