Standard aluminum electrolytic capacitor, 120µF capacitance, 100V DC rated voltage, and 20% tolerance. Features a radial package with a 5mm lead pitch, measuring 12.5mm in diameter and 20mm in height. Offers a ripple current of 765mA, ESR of 640mΩ, and impedance of 160mΩ. Designed for through-hole mounting, operating from -40°C to 105°C with a 10000-hour life expectancy. RoHS compliant and lead-free.
PackageRadial
Capacitance120uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHE2A121MHD6 technical specifications.
General
| Capacitance | 120uF |
| Package/Case | Radial |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.08% |
| ESR (Equivalent Series Resistance) | 640mR |
| Height | 20mm |
| Impedance | 160mR |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 120uA |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 765mA |
| RoHS Compliant | Yes |
| Series | UHE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE2A121MHD6 Datasheet
Download the complete datasheet for Nichicon UHE2A121MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

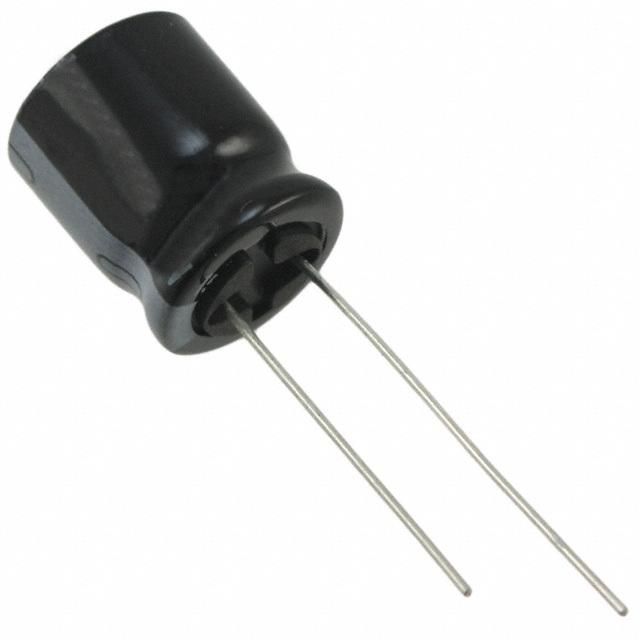

Product Images
