Standard aluminum electrolytic capacitor with 220µF capacitance and 100V DC rating. Features a 20% tolerance, 16mm diameter, 20mm height, and 7.5mm lead pitch for radial mounting. Offers 10000 hours of life at 105°C, with a ripple current of 791mA and ESR of 380mΩ. RoHS compliant and lead-free.
PackageRadial
Capacitance220uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHE2A221MHD6TN technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 380mR |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Impedance | 91mR |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 791mA |
| RoHS Compliant | Yes |
| Series | UHE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE2A221MHD6TN Datasheet
Download the complete datasheet for Nichicon UHE2A221MHD6TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

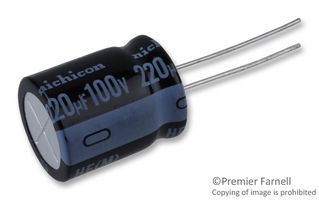

Product Images
