150µF, 25V radial aluminum electrolytic capacitor with 20% tolerance. Features a 6.3mm diameter, 11mm height, and 2.5mm lead pitch for through-hole mounting. Offers 550mA ripple current, 37.5µA leakage current, and 6000-hour life at 105°C. Impedance is 100mΩ, operating temperature range is -40°C to 105°C. Lead-free and RoHS compliant.
PackageRadial
Capacitance150uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHV1E151MED technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Height | 11mm |
| Height - Seated (Max) | 0.433inch |
| Impedance | 100mR |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 37.5uA |
| Length | 11mm |
| Life (Hours) | 6000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 550mA |
| RoHS Compliant | Yes |
| Series | HV |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHV1E151MED Datasheet
Download the complete datasheet for Nichicon UHV1E151MED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

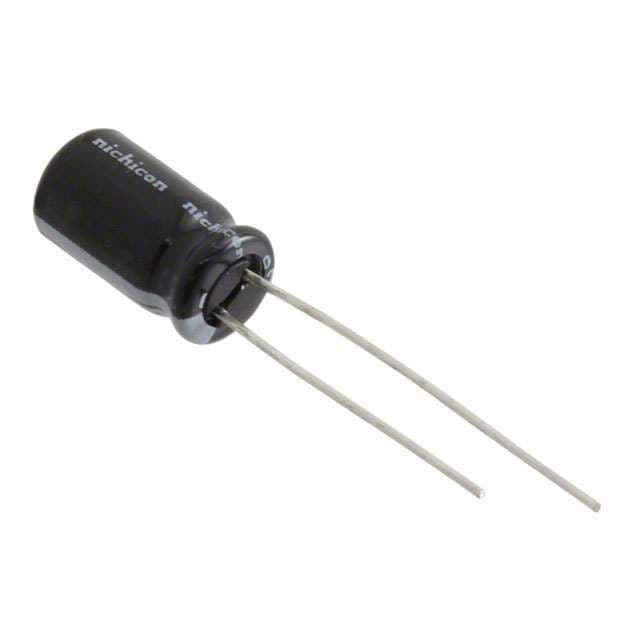

Product Images
