Technical Specifications
Nichicon UHV1E152MHD technical specifications.
General
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Dissipation Factor | 0.13% |
| Height - Seated (Max) | 0.866inch |
| Impedance | 16mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Leakage Current | 375uA |
| Length | 20mm |
| Life (Hours) | 6000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 2.725A |
| RoHS Compliant | Yes |
| Series | HV |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHV1E152MHD Datasheet
Download the complete datasheet for Nichicon UHV1E152MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

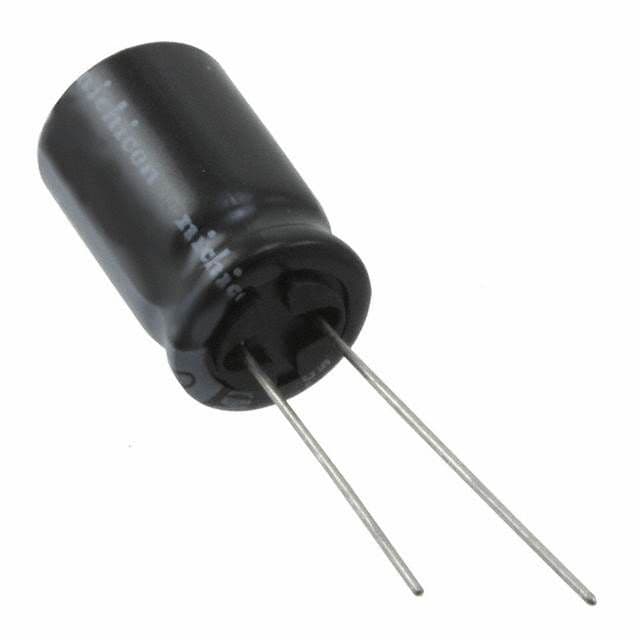

Product Images
