220µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features 990mA ripple current, 59mΩ impedance, and 77µA leakage current. Operates from -40°C to 105°C with a 6000-hour life rating. Dimensions are 8mm diameter by 11.5mm length with a 3.5mm lead pitch and 0.6mm lead diameter. Through-hole mounting, RoHS compliant, and supplied in bulk packaging.
PackageRadial
Capacitance220uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHV1V221MPD technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Dissipation Factor | 0.11% |
| Height - Seated (Max) | 0.512inch |
| Impedance | 59mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Leakage Current | 77uA |
| Length | 11.5mm |
| Life (Hours) | 6000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 990mA |
| RoHS Compliant | Yes |
| Series | HV |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHV1V221MPD Datasheet
Download the complete datasheet for Nichicon UHV1V221MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

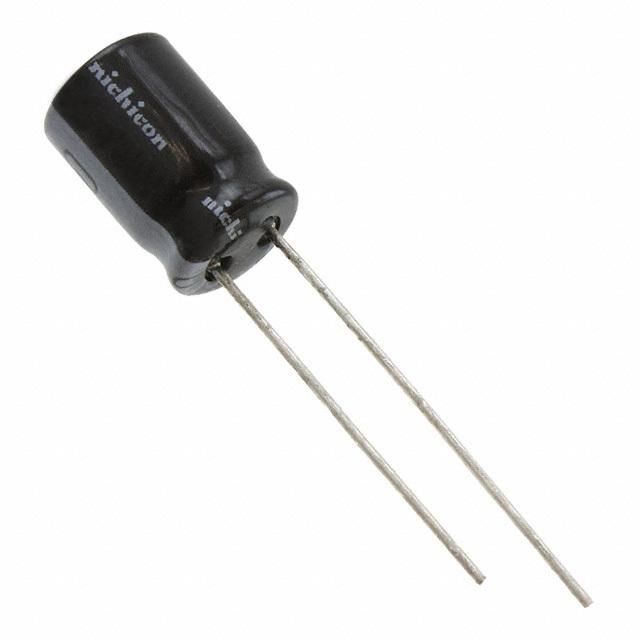

Product Images
