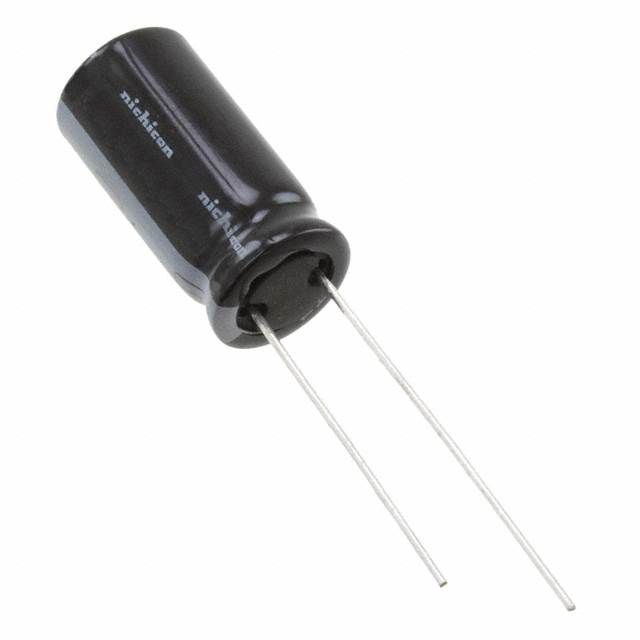

This Nichicon aluminum electrolytic capacitor features a capacitance of 1.2mF with a tolerance of 20% and a voltage rating of 16V. It has an impedance of 19mR and is designed for use in through-hole applications. The capacitor is rated for operation between -40°C and 105°C and is packaged in bulk quantities of 200 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UHW1C122MPD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon UHW1C122MPD technical specifications.
| Capacitance | 1.2mF |
| Package/Case | Radial |
| Height - Seated (Max) | 0.866inch |
| Impedance | 19mR |
| Lead Pitch | 0.197inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Ripple Current | 2.5A |
| RoHS Compliant | Yes |
| Series | HW |
| Tolerance | 20% |
| Voltage Rating | 16V |
| RoHS | Compliant |
