Technical Specifications
Nichicon UHW1H821MHD technical specifications.
General
| Capacitance | 820uF |
| Package/Case | Radial |
| Height - Seated (Max) | 1.063inch |
| Impedance | 23mR |
| Lead Pitch | 0.197inch |
| Length | 25mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Polarity | Polar |
| Ripple Current | 2.8A |
| Ripple Current (AC) | 2.8A |
| RoHS Compliant | Yes |
| Series | HW |
| Tolerance | 20% |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHW1H821MHD Datasheet
Download the complete datasheet for Nichicon UHW1H821MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

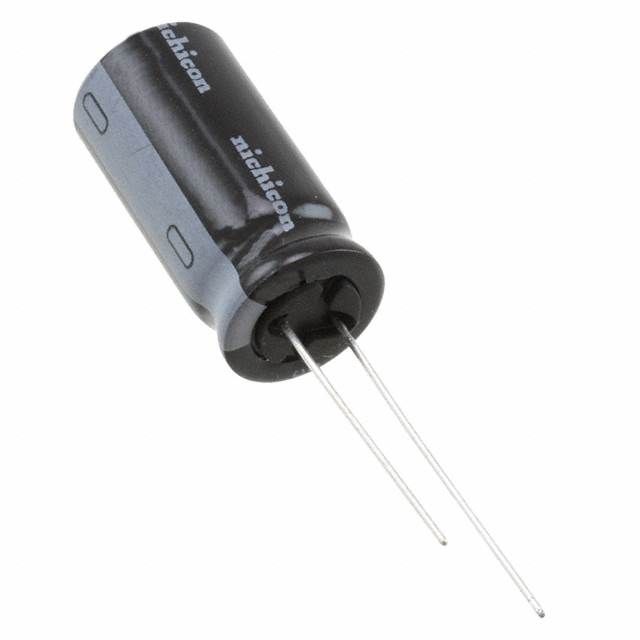

Product Images
