Radial aluminum electrolytic capacitor, 470µF capacitance, 35V voltage rating, and 20% tolerance. Features a low impedance of 30mΩ, a maximum operating temperature of 105°C, and a lifespan of 10,000 hours. Designed for through-hole mounting with a 5mm pitch and a 10x16mm case size. This RoHS compliant component is supplied in bulk packaging.
PackageRadial
Capacitance470uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHW1V471MPD technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Impedance | 30mR |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | UHW |
| Tolerance | 20% |
| Voltage Rating | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHW1V471MPD Datasheet
Download the complete datasheet for Nichicon UHW1V471MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

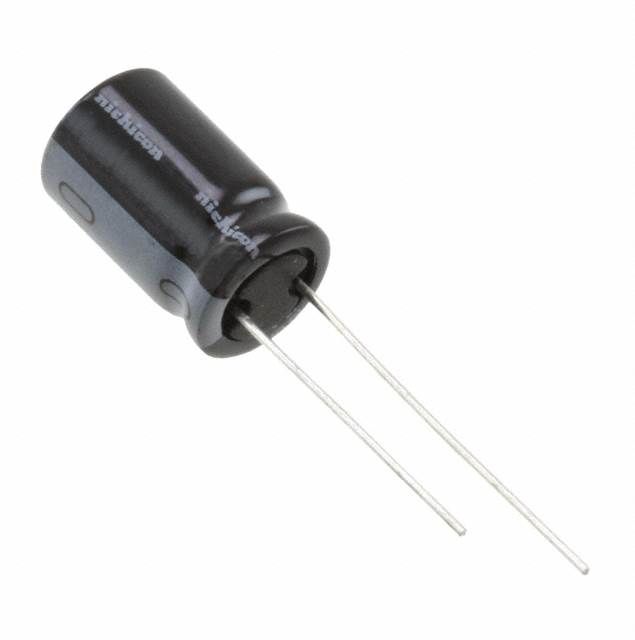

Product Images
