Technical Specifications
Nichicon UHZ0J102MPM technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Dissipation Factor | 0.22% |
| Impedance | 14mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Leakage Current | 189uA |
| Length | 15mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 2.21A |
| RoHS Compliant | Yes |
| Series | UHZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHZ0J102MPM Datasheet
Download the complete datasheet for Nichicon UHZ0J102MPM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

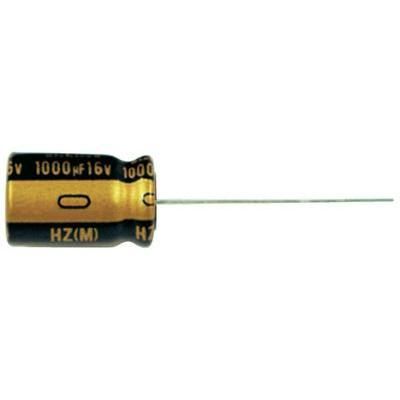

Product Images
