The Nichicon UKL1C471MPD is a 470uF aluminum electrolytic capacitor with a 16V voltage rating. It features a radial package with a 10mm diameter and 20mm height, and is designed for through-hole mounting. The capacitor has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is RoHS compliant and has a tolerance of 20%. The UKL series is a standard range of aluminum electrolytic capacitors from Nichicon.
PackageRadial
Capacitance470uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UKL1C471MPD technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Height | 20mm |
| Lead Pitch | 5mm |
| Leakage Current | 15.04uA |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 550mA |
| RoHS Compliant | Yes |
| Series | UKL |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UKL1C471MPD Datasheet
Download the complete datasheet for Nichicon UKL1C471MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

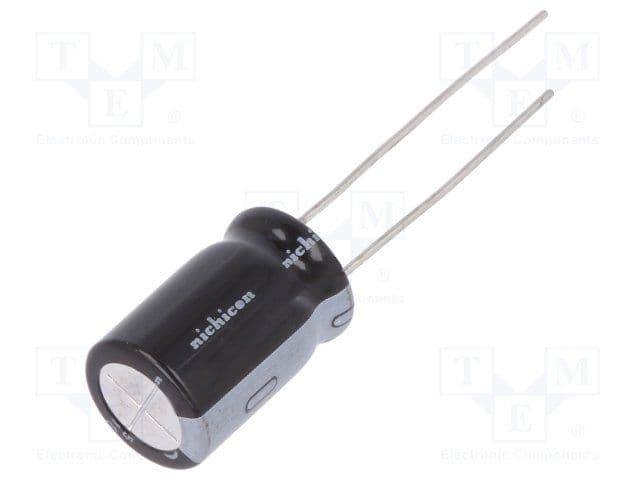

Product Images
