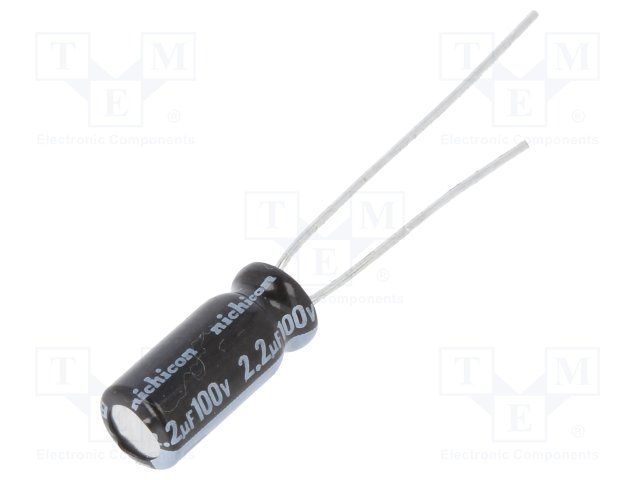

The Nichicon KL Series Aluminum Electrolytic Capacitor is a 2.2uF, 20% tolerance, 100V rated component available in a radial through hole package. It operates over a temperature range of -40°C to 85°C and has a maximum seated height of 0.492inch. This capacitor is compliant with RoHS regulations and is packaged on a cut tape reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UKL2A2R2MDD1TD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon UKL2A2R2MDD1TD technical specifications.
| Capacitance | 2.2uF |
| Package/Case | Radial |
| Height - Seated (Max) | 0.492inch |
| Lead Pitch | 0.079inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Ripple Current | 28mA |
| RoHS Compliant | Yes |
| Series | KL |
| Tolerance | 20% |
| Voltage Rating | 100V |
| RoHS | Compliant |
Download the complete datasheet for Nichicon UKL2A2R2MDD1TD to view detailed technical specifications.
