Technical Specifications
Nichicon ULD2W470MHD technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 0.295inch |
| Leakage Current | 2.155mA |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ripple Current | 480mA |
| RoHS Compliant | Yes |
| Series | ULD |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon ULD2W470MHD Datasheet
Download the complete datasheet for Nichicon ULD2W470MHD to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

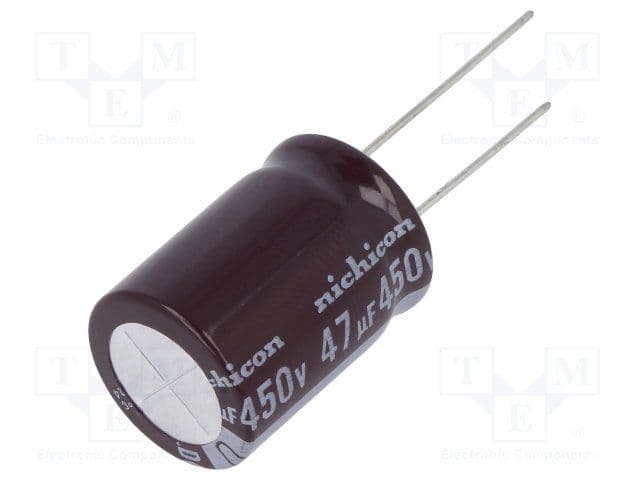

Product Images
