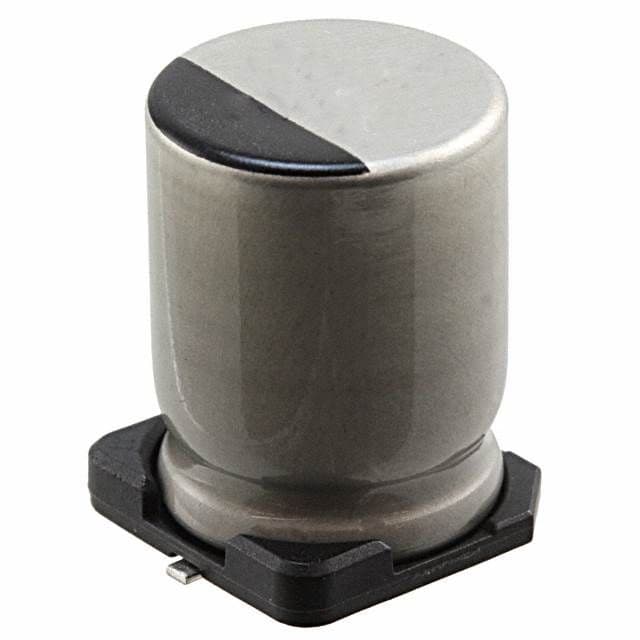

The Nichicon ULH2W5R6MNL1GS is a 5.6uF aluminum electrolytic capacitor with a 20% tolerance and a 450V DC rated voltage. It is packaged in a surface mount SMD/SMT package with a 4.5mm lead pitch and is lead free. The capacitor has a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It is RoHS compliant and has a leakage current of 200.8mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon ULH2W5R6MNL1GS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 5.6uF |
| Package/Case | SMD/SMT |
| Diameter | 10mm |
| Height | 13.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.5mm |
| Leakage Current | 200.8mA |
| Length | 13.5mm |
| Life (Hours) | 4000Hour |
| Material | Aluminium |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Ripple Current | 40mA |
| RoHS Compliant | Yes |
| Series | ULH |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
| RoHS | Compliant |
