Nichicon
ULV2E180MNL1GS
Cap Aluminum Lytic 18uF 250V 20% (10 X 13.5mm) SMD 55mA 10000h 105°C Automotive T/R
PackageSMD/SMT
Voltage250V
Capacitance18uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon ULV2E180MNL1GS technical specifications.
General
Capacitance
18uF
Package/Case
SMD/SMT
Diameter
10mm
Height
10mm
Height - Seated (Max)
0.571inch
Lead Pitch
4.5mm
Leakage Current
280mA
Length
13.5mm
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
55mA
RoHS Compliant
Yes
Series
LV
Termination
SMD/SMT
Tolerance
20%
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Nichicon ULV2E180MNL1GS Datasheet
Download the complete datasheet for Nichicon ULV2E180MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

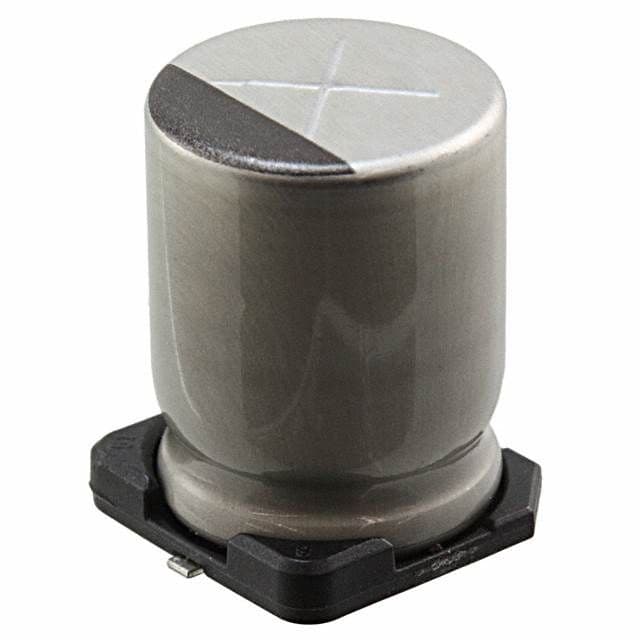

Product Images
